CX Max - Cutting the air
The CX Max is a fully anatomic shaped, high-end performance harness with speedbag for experienced pilots.
The SOL XC-harness serie is recognized for collecting many important titles and world records since 2002.
Its aerodynamic is still more enhanced in order to maximize the synergy of the paraglider-harness unit.
LTF / EN certified in all aspects: back protection, structure (120 kg) and operation.
Features and Technology in detail
| 1 |
Spacious storage compartment; |
8 |
Cable guide for accelerator; |
| 2 |
ID compartment; |
9 |
Easy speedbag entry and exit; |
| 3 |
Water compartment (hydration system); |
10 |
Composite Divinycell® lightweight footboard; |
| 4 |
Passage for hydration hose exit; |
11 |
2 side pockets; |
| 5 |
Front container for instruments / 10-liter ballast compartment with side hose outlet; |
12 |
Speed system with 39mm ball bearing pulleys; |
| 6 |
Speedbag closure by pulley system; |
13 |
Two connection points for medium or large pulleys; |
| 7 |
Composite Divinycell® lightweight seat plate; |
14 |
8-liter ballast compartment with side hose outlet. |
Safety
In addition to its all-embracing comfort, innovative components are responsible for making the CX Max a harness with the highest safety standards, which are indispensable for long distances and all flight phases.
| 1 |
Rescue compartment right side; |
5 |
Rescue compartment left side; |
| 2 |
Back protector foam LTF / EN certified |
6 |
Safety T lock; |
| 3 |
ANTI-G compartment; |
7 |
Impact protection and perforation plate. |
| 4 |
Independent bridles system according to LTF / EN norm; |
|
|
Comfort
To render top performance in flight, the pilot needs a comfortable, ergonomic harness with easy-to-use adjustments.
| 1 |
Shoulder adjustments; |
8 |
Inclination and length adjustment of the speedbag; |
| 2 |
Side adjustments; |
9 |
Safety T lock; |
| 3 |
Lumbar adjustments; |
10 |
Side plate for load distribution; |
| 4 |
Chest strap adjustment |
11 |
Anatomic shoulder shape; |
| 5 |
Anatomic back shape; |
12 |
Independent and adjustable ABS; |
| 6 |
Leg strap adjustment in V; |
13 |
Seat plate inclination adjustment; |
| 7 |
Adjustable carabiner distance 35-55cm; |
14 |
Adjustable Front V. |
Aerodynamics
The main factor for high performance harnesses is their aerodynamic design. The entire construction and development of the CX Max is designed with this in mind. The aerodynamic rear spoiler is divided into cells with internal profiles along its entire length.
| 1 |
Profiled rear spoiler; |
3 |
Speedbag with built-in container. |
| 2 |
Aerodynamic Speedbag nose; |
|
|
Materials
The materials are specifically chosen and positioned in the construction of the CX Max harness, so that they have better comfort and durability when using this equipment.
Since 1991 SOL has been producing and following the evolution of materials and products. Our experience leads us to carefully choose the materials used, guaranteeing great durability and a high level of safety. All SOL harnesses are manufactured in our own factory.
For more information, consult your CX Max harness manual.
Technology
 |
ABS System |
 |
Quick buckles |
 |
Confort Plus |
 |
Safety T-Lock |
 |
2 Rescue Containers |
 |
Certified back protector |
 |
Laser Cut |
 |
Full Hybrid Tecnology |
 |
Aerodynamic coefficient |
|
|
TECHNICAL DATA
| Size |
S |
M |
L |
XL |
|
| Seat's width |
30 |
32 |
34 |
36 |
cm |
| Seat's lenght |
36 |
38 |
40 |
42 |
cm |
| Connection point height |
45 |
45 |
47 |
49 |
cm |
| Ventral distance (min - max) |
38 - 55 |
38 - 55 |
38 - 55 |
38 - 55 |
cm |
|
Rescue compartment right side (min - max)
|
4000 - 9000 |
4000 - 9000 |
4000 - 9000 |
4000 - 9000 |
cm³ |
|
Rescue compartment left side (min - max)
|
2500 - 4500 |
2500 - 4500 |
2500 - 4500 |
2500 - 4500 |
cm³ |
| Superior ballast capacity |
10 |
10 |
10 |
10 |
L |
| Lower ballast capacity |
8 |
8 |
8 |
8 |
L |
| Luggage capacity |
31 |
31 |
31 |
31 |
L |
| Harness weight |
7,5 |
7,9 |
8,3 |
8,7 |
Kg |
| Maximum pilot weight |
120 |
120 |
120 |
120 |
Kg |
| Back protector |
14 |
14 |
14 |
14 |
cm |
| Certification |
LTF / EN |
LTF / EN |
LTF / EN |
LTF / EN |
|
| Recommended backpack |
XL |
XL |
XL |
XL |
|
The harness weight includes everything described in the DELIVERY WITH.
The weight of the harness can vary 150g, depending on the batch of materials and climatic conditions.
Colors may vary slightly in color depending on material batches.

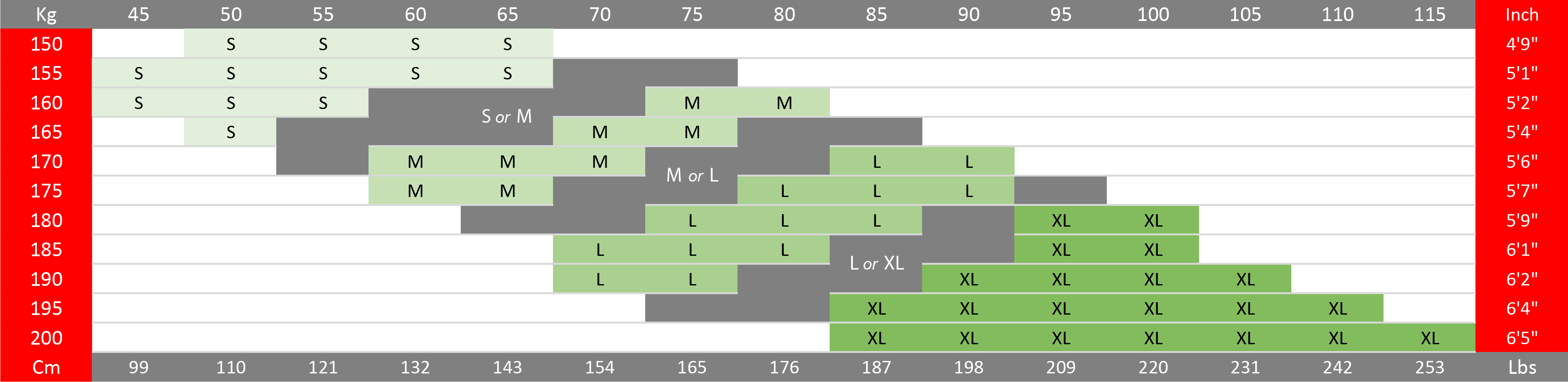

Height X Weight
This table is for reference only, and should not be used as an exclusive source in deciding the size of the harness. Consult your dealer.
Certification - LTF / EN
| Certification |
LTF |
EN |
| Inspection certificate |
 |
|
| Sticker |
|
|
| Structural test report |
|
|
| Impact Pad Report |
|
